Euro-Top X4 HI

Discover the advantages of the fourth generation of cable glands with increased impact resistance and double sealing insert from RST.

Order Product Sample

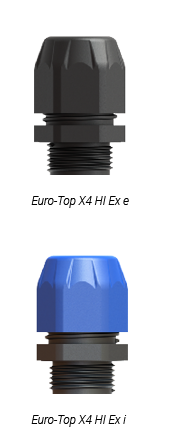

Euro-Top X4 HI: Reliable, tough and proven

The Euro-Top X4 HI is an Ex e plastic cable gland with an impact resistance of 7 joules, regardless of the choice of sealing insert: chloroprene or silicone (-60 ° C). Usually ex plastic cable glands only have a 4-joule impact strength, which means that the glands have to be protected against stronger impacts. This effort does not apply when using a 7 joule cable gland.

Of course, the Euro-Top X4 HI has the usual approvals ATEX, IECEx, EAC and INMETRO and has been checked and approved in accordance with the tests of the current standards.

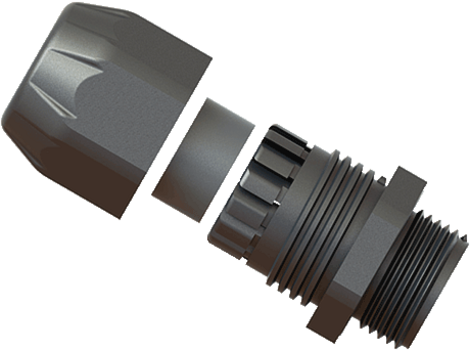

The Euro-Top X4 HI is also available with a double sealing insert for an extended clamping range.

Consultation

Your advantages of the Euro-Top X4 HI cable glands at a glance:

    • 7 joule impact resistance
    • Tested and approved according to current standards
    • Available from M12x1,5 to M63x1,5
    • Available with silicone sealing for increased temperature range (-60°C)
    • Approval according to ATEX, IECEx, EAC and INMETRO
    • Cable diameters of 3-44 mm can be installed
    • Protection class IP66/68



    Accessories:

    Plug

    Protection tab

    More cable glands from RST

    Applications

    • Mechanical engineering
    • Plant engineering
    • Petrochemical
    • Industry
    • Motor and drive technology
    • Mining
